Sound transmission loss is one of the primary performance metrics in architectural and industrial acoustics. It quantifies how well a barrier or assembly prevents airborne sound from passing through, using a logarithmic scale to express the difference in sound energy between the source side and the receiver side. Higher values indicate stronger isolation. This matters in spaces where equipment noise, speech privacy, or regulatory compliance are project drivers.

Defining Sound Transmission Loss as a Measured Acoustic Property

Sound transmission loss provides a quantifiable value that reflects how much airborne sound is blocked by a material or assembly. It is typically expressed in decibels and calculated using the formula TL = 10 × log₁₀(W₁/W₂), where W₁ is the sound power incident on the barrier and W₂ is the transmitted power on the opposite side. A 30 dB transmission loss means that the transmitted sound energy is 1,000 times weaker than the source.

This measurement varies with frequency. Most materials block higher frequencies more effectively than lower ones, which is why it’s important to review full-spectrum data rather than relying on single-number ratings. Frequency-specific transmission loss reveals resonant dips, air leakage issues, and mass performance breakdowns that may be hidden behind an aggregate rating.

STL vs. STC: Understanding the Difference in Ratings

Both STL and STC help quantify acoustic isolation, but they serve different roles in design, testing, and specification.

STC as a Simplified Acoustic Rating

Sound Transmission Class (STC) is a single-number rating derived from measured sound transmission loss across a specific frequency range, typically 125 Hz to 4000 Hz. It simplifies performance comparison across partition types, especially for interior walls and floor assemblies. However, STC does not reflect performance outside that band.

STL as a Full-Frequency Performance Metric

STL values, on the other hand, provide continuous data across the full frequency spectrum. In applications where low-frequency control is especially important—such as mechanical rooms, utility enclosures, or generator housings—relying solely on STC can produce misleading results. Acoustic design professionals must review the full STL curve to understand how a barrier behaves across the full operational range.

Test Standards That Define STL and STC Data

Transmission loss data used to calculate STC follows procedures defined in ASTM E90‑23, the laboratory standard for measuring airborne sound transmission between rooms. This test uses paired reverberant chambers and a defined microphone array to generate TL values across 1/3-octave bands from 80 to 5000 Hz. Those values are then fitted into the ASTM E413 contour, which produces the final STC rating used in product submittals and building assemblies.

For field verification, ASTM E336 outlines the procedures to measure transmission loss in installed conditions, including correction factors for background noise, room absorption, and microphone placement. Together, these standards ensure that both lab and jobsite data are grounded in repeatable, validated methods. Projects subject to ASHRAE mechanical sound limits or local building codes often rely on these procedures to verify acoustic isolation performance.

How Is Sound Transmission Loss Measured?

Laboratory testing and field measurement are both used to evaluate sound transmission loss. Lab tests often use two-room setups with controlled source and receiver environments. A sound generator produces test signals in one room, and microphones in both rooms measure the incident and transmitted sound energy. The difference, corrected for room acoustics, produces the STL value.

Impedance tube testing is another method, especially for small samples or product components. A material is placed inside a rigid tube, and microphones at fixed distances measure incoming and transmitted waveforms. This setup is highly sensitive and useful for modeling early in the design phase.

What Affects STL Performance in Field Conditions?

Barrier performance in real applications depends on more than lab-rated values. Several physical, structural, and design factors influence transmission loss in the field.

Material Mass and Assembly Configuration

According to the mass law in acoustics, doubling the weight of a wall increases its transmission loss by roughly 6 dB—assuming rigidity and damping remain constant. Heavier materials such as masonry, metal composite, or layered concrete offer higher STL performance. However, mass alone may not control resonance or mechanical coupling in multilayer walls.

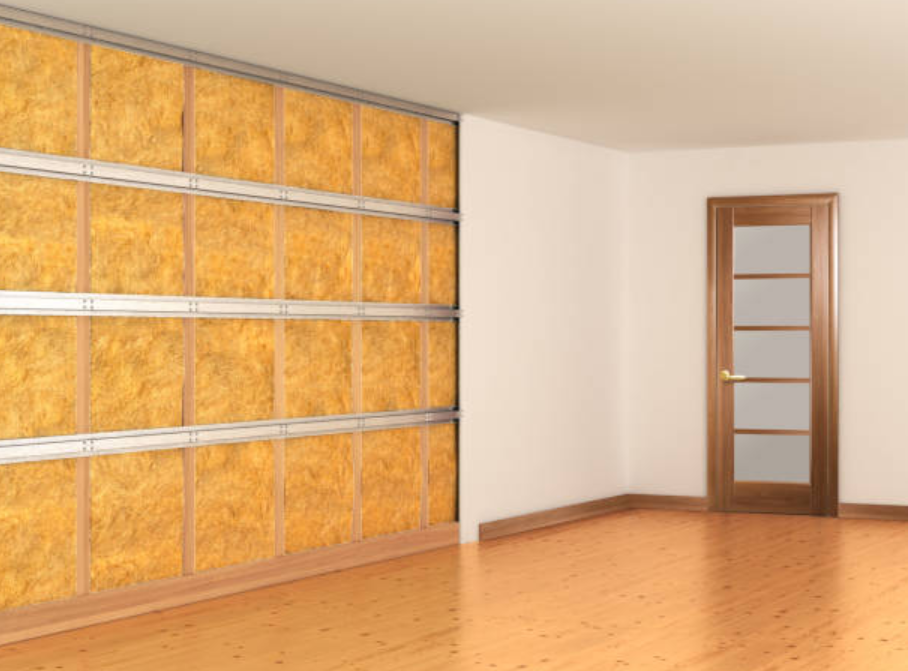

Assemblies with air gaps and cavity insulation often outperform single-mass barriers. A mass-spring-mass configuration separates two rigid layers with absorptive material between them, breaking up vibrational energy and improving performance at low and mid frequencies.

Leakage Paths and Flanking Structures

• Duct transitions and roof penetrations act as airborne paths.
• These gaps limit the STL performance of nearby baffles or silencers.
• Even with a high-STL wall, flanking paths can reintroduce sound energy into the receiver space by bypassing the intended barrier.

Proper sealing, structural decoupling, and enclosure continuity are required to maintain rated performance. Flanking mitigation strategies include offsetting seams, isolating studs, and treating penetrations with sealants or boots tested for acoustic integrity.

Frequency Range and Low-Frequency Challenges

Low-frequency attenuation depends on engineered assemblies that break resonance and absorb bass energy. Mass-spring-mass walls and tuned cavities are often used to intercept 63–125 Hz energy peaks. These frequencies are difficult to block and can travel long distances through stiff or lightly insulated structures.

In generator housings, for example, STL losses often occur between 63 and 125 Hz. Without tailored treatment, even small resonances at these bands can result in elevated dB levels in occupied zones or adjacent properties.

STL in Noise Control Design and System Integration

Acoustic engineering relies on sound transmission loss as a field-relevant specification, not just a lab rating. Real-world STL depends on how components are installed, sealed, and coupled to surrounding structures. Silencers, plenum walls, and enclosures must be modeled and tested as assemblies—not evaluated in isolation.

This is why performance-driven acoustic engineering relies on complete system modeling, not isolated material ratings. STL must be validated under airflow, mounting, and boundary conditions specific to the jobsite. Assemblies that work in test labs may underperform once structural frames or duct interfaces are introduced.

Dynasonics Designs STL Systems for Field-Verified Outcomes

Our engineers evaluate full-spectrum STL requirements and specify assemblies that maintain acoustic isolation under site conditions.

Model RA Return-Air Silencers

The Model RA silencer reduces sound transmission between rooms while allowing pressure equalization in mechanical walls and plenum barriers. It’s used in partitions where passive air transfer must not compromise acoustic privacy or isolation.

QDC Rectangular and Circular Silencers

In ducted systems, QDC rectangular silencers feature internal baffle configurations engineered for low-frequency attenuation and high transmission loss across compact footprints. For cylindrical routing, Dynasonics circular silencers are tuned to specific velocity, pressure drop, and STL performance targets.

Integrated Plenum Modules and Assembly Design

Dynasonics also manufactures acoustical plenum modules that combine silencers, louvers, and barrier panels into a single structure. These modules preserve STL continuity at structural junctions, duct transitions, and equipment interfaces—minimizing weak points across the enclosure.

Each component is selected not just for insertion loss, but for how it contributes to overall transmission loss across the full assembly. This ensures design performance translates to the field.

Discuss STL Requirements with Dynasonics for Acoustic System Success

Our engineers review airborne noise targets and align STL specifications with structural design and jobsite constraints. We build field-tested acoustic systems for generators, data centers, and other critical environments. Contact us today for more information.
